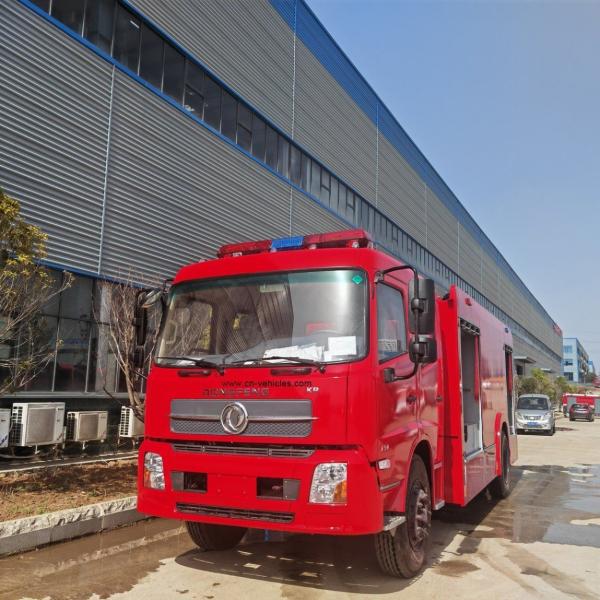

Dongfeng KR Fire Extinguisher Foam Dry Powder Fire Fighting Truck
Dongfeng KR Fire Extinguisher Foam Dry Powder Fire Fighting Truck is a specialized emergency vehicle built on a Dongfeng KR series chassis, designed to combat various types of fires using a combination of water, foam, and dry chemical powder.
These combined-agent fire trucks are highly versatile, making them suitable for petrochemical plants, oil fields, airports, ports, and general municipal fire response.
Advantages of a Combined Agent Truck:
- Versatility: Capable of extinguishing Class A (ordinary combustibles), Class B (flammable liquids), and Class C (electrical) fires.
- Dry Powder: Highly effective for rapidly knocking down flammable liquid/gas fires, particularly in industrial settings.
- Water/Foam: Used for deep-seated fires and to create a suppression blanket on liquid spills.
Key Performance Parameters:
- Flow Rate: Up to 40–60 L/s @ 1.0 MPa
- Priming Method: Vacuum pump or electric priming
Fire Monitor (Turret):
- Type: Combined foam/water monitor
- Flow Rate: 20–40 L/s
- Range:
- Water: Up to 50 m
- Foam: Up to 45 m
Dry Powder Cannon:
- Range: Up to 30–35 m
- Controlled manually or remotely
⚙️ Powertrain
- Engine: Dongfeng Cummins or Yuchai diesel engine
- Horsepower: Typically 190–260 HP
- Emission Standard: Euro V / Euro VI
- Transmission: Manual (6-speed or 8-speed)
Dongfeng KR Fire Extinguisher Foam Dry Powder Fire Fighting Truck Technical Sheet:
| Component | Specification |
| Chassis | Dongfeng KR, often with a 4x4 or 6x4 drive system. |
| Cabin | Double-row (crew cab) to accommodate up to 6 people (e.g., 3+3). |
| Tank Capacity (Typical Combined) | Water: Varies, often around 5,000 to 7,000 Liters. |
| Foam: Varies, often around 500 to 3,000 Liters. |
| Dry Powder: Varies, often around 500 kg to 2,000 kg. |
| Tank Material | High-grade Stainless Steel or Carbon Steel (with anti-corrosion treatment). |
| Engine | Various options, such as Cummins or Yuchai, with varying horsepower and emission standards (e.g., Euro III to Euro VI). |
| Fire Pump | High-flow fire pump (e.g., CB10/40, CB20.10/30.60) with capacity typically around 2,400 to 3,600 Liters/min. |
| Monitors (Turrets) | Water/Foam Monitor: Roof-mounted, capable of long-range water and foam jetting (e.g., 60m+ for water/foam). |
| Dry Powder Monitor: Separate roof-mounted monitor for dry chemical powder. |
| Dry Powder System | Includes a pressurized tank (e.g., 1.4 MPa working pressure) and associated CO2 or Nitrogen cylinders for propulsion. |
| Hose Reel | Typically equipped with a high-pressure hose reel for dry powder discharge. |
| Overall Dimensions | Varies depending on capacity, but typically around 8400×2500×3600mm (L×W×H) for a 4x4 model. |
| 1. Chassis and Engine (Dongfeng KR Platform) |
| Feature | Typical Specification | Notes |
| Chassis Model | Dongfeng KR (various sub-models like EQ1180GL6DJ) | Robust commercial vehicle chassis. |
| Drive Type | 4×2 or 4×4 | 4×4 is common for increased off-road capability. |
| Cab Type | Double-row/Crew cab, Flat-roof | Typically accommodates 2+4 or 3+3 firefighters. |
| Engine | Diesel, often Yuchai or Cummins | Power ratings vary, for example, 147 kW (200 HP) or 190 HP. |
| Emission Standard | Often compliant with modern standards (e.g., EURO III, IV, V, or VI) | Varies based on the market requirements. |
| Maximum Speed | ≈85−95 km/h | Ensures rapid response to fire scenes. |
| Gross Vehicle Weight (GVW) | Highly variable, often ≈14,900 kg to 20,000 kg (or more) | Depends on the specific agent capacities. |
| 2. Firefighting Agent Capacities |
| This type of truck carries three different extinguishing agents to combat Class A, B, C, and sometimes D fires. |
| Agent Tank | Typical Capacity Range | Tank Material |
| Water Tank | 3,000 to 6,000 Liters (3 to 6 m3) | Carbon Steel or Stainless Steel (sometimes PP composite) |
| Foam Tank | 500 to 2,000 Liters (0.5 to 2 m3) | Stainless Steel or PP composite |
| Dry Powder Tank | 500 to 2,000 kg | High-grade pressure vessel steel (e.g., Q345R) |
| Propellant System | Usually includes a CO2 or Nitrogen system to pressurize the dry powder tank. |
|
| 3. Firefighting System Performance |
| Component | Typical Specification |
| Fire Pump Model | CB10/40 or similar (Low/Normal Pressure) |
| Pump Rated Flow | 40 L/s at 1.0 MPa (varies, e.g., 30 L/s to 60 L/s) |
| Foam Proportioning System | Automatic foam proportioning system (e.g., 1% to 10% ratio rate) |
| Roof Monitor (Water/Foam) | Combined Water/Foam Monitor (e.g., PL32, PS40, or similar) |
| Water/Foam Jet Range | Water: ≥50 m to 65 m; Foam: ≥40 m to 60 m |
| Dry Powder Monitor | Separate dry powder monitor (e.g., PF30) |
| Dry Powder Range | ≥35 m |
| Dry Powder Discharge Rate | ≥25 kg/s |
Dongfeng KR Fire Extinguisher Foam Dry Powder Fire Fighting Truck details:
Superstructure and Equipment
- Body Structure: Often constructed with a welded frame of high-quality square pipes (main structure) and high-strength aluminum alloy profiles for the equipment compartments.
- Equipment Compartments: Roll-up shutters (aluminum alloy) provide easy access to fire hoses, nozzles, self-contained breathing apparatus (SCBA) cylinders, axes, hydraulic tools, and other essential equipment.
- Electrical System: Includes long-row LED warning lights, sirens, and specialized communication equipment.
- Control System: Features a user-friendly control panel in the pump room, often with intelligent PLC electronic control for the fire system functions.
Dongfeng KR Fire Extinguisher Foam Dry Powder Fire Fighting Truck Application:
The Dongfeng KR Foam Dry Powder Fire Fighting Truck is a specialized vehicle designed to handle complex and high-risk fire emergencies by utilizing a combination of extinguishing agents.
Its application areas and the types of fires it is designed to combat include:
1. Primary Application Areas
The combined fire-fighting agents (foam and dry powder) make the truck ideal for large, specialized, and high-risk environments where water alone is insufficient:
- Petrochemical and Oil & Gas Facilities: Refineries, chemical plants, oil depots, petroleum storage facilities, and gas processing areas.
- Industrial and Manufacturing Sites: Large factories, industrial parks, and areas that handle various flammable materials.
- Ports and Docks: Facilities dealing with the loading, unloading, and storage of flammable cargo and fuels.
- Airport and Aircraft Hangars: Used for rapid intervention and tackling fuel-related aircraft fires.
- Municipal and Public Security Fire Brigades: For extinguishing large-scale oil fires and general material fires in cities and high-risk zones.
2. Types of Fires It Is Designed to Combat (Fire Classes)
The combination of foam and dry powder provides versatility across multiple fire classes:
Dry Powder Agent is effective on:
- Class B Fires: Flammable liquids (e.g., gasoline, oil, paint, diesel, solvents). Dry powder suppresses these fires by interrupting the chemical chain reaction.
- Class C Fires: Flammable gases (e.g., propane, butane, natural gas) and fires involving energized electrical equipment.
- Class D Fires (with specialized powder): Combustible metals (e.g., magnesium, potassium, sodium, aluminum).
- Class A Fires (with multi-purpose dry powder): Ordinary combustibles (e.g., wood, paper, textiles).
Foam Agent is effective on:
- Class A Fires: Ordinary combustibles (e.g., wood, paper). Foam provides a cooling effect and smothers the fire.
- Class B Fires: Flammable liquids (hydrocarbon and polar solvent types). Foam works by forming a blanket over the liquid surface, smothering the fire, and preventing the release of flammable vapors.
